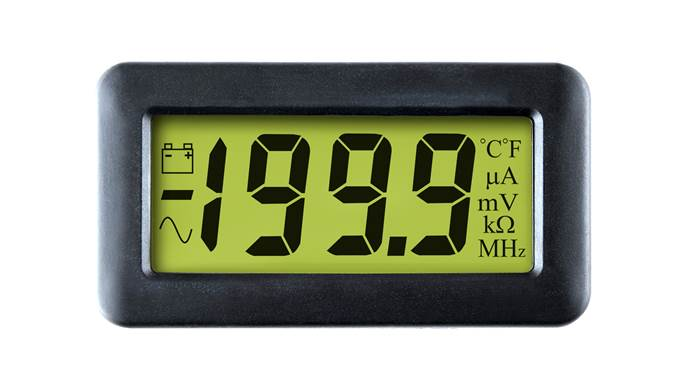

{"id":747042897934,"title":"200mV LCD Voltmeter with Backlighting - DPM 750S-BL","handle":"200mv-lcd-voltmeter-with-backlighting-dpm-750s-bl","description":"This panel meter features a 3½ digit LCD with 12.7mm (0.5\") digit height, annunciators and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eSpecifications:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e- Accuracy (overall error): 0.1 % (±1 count)\u003cbr\u003e- Operating temperature: 0 to 50 °C (32 to 122 °F)\u003cbr\u003e- Sample rate: 2.5 samples\/sec\u003cbr\u003e- Supply voltage (V+ to V-): 6 to 15 V d.c.\u003cbr\u003e- Supply Voltage (V+ to GND): 3 to 7.5 V d.c.\u003cbr\u003e- Supply current (V+ to V-): 350 uA\u003cbr\u003e- Supply current (V+ to GND): 500 uA\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eApplications:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e- Precision Instrumentation Systems\u003cbr\u003e- Power Supply Monitoring\u003cbr\u003e- Hand held instruments\u003cbr\u003e- Panel-Mount Indication\u003cbr\u003e- Low Power Voltage Measurement","published_at":"2018-05-01T19:16:24+09:30","created_at":"2018-05-01T19:16:24+09:30","vendor":"Lascar Electronics","type":"Voltmeter","tags":["LCD","Voltage"],"price":9240,"price_min":9240,"price_max":9240,"available":true,"price_varies":false,"compare_at_price":10890,"compare_at_price_min":10890,"compare_at_price_max":10890,"compare_at_price_varies":false,"variants":[{"id":8126271586318,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DPM 750S-BL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"200mV LCD Voltmeter with Backlighting - DPM 750S-BL","public_title":null,"options":["Default Title"],"price":9240,"weight":500,"compare_at_price":10890,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.lascar.com.au\/cdn\/shop\/products\/DPM_750S-BL-New.png?v=1525167984"],"featured_image":"\/\/www.lascar.com.au\/cdn\/shop\/products\/DPM_750S-BL-New.png?v=1525167984","options":["Title"],"media":[{"alt":null,"id":221104439414,"position":1,"preview_image":{"aspect_ratio":1.778,"height":388,"width":690,"src":"\/\/www.lascar.com.au\/cdn\/shop\/products\/DPM_750S-BL-New.png?v=1525167984"},"aspect_ratio":1.778,"height":388,"media_type":"image","src":"\/\/www.lascar.com.au\/cdn\/shop\/products\/DPM_750S-BL-New.png?v=1525167984","width":690}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"This panel meter features a 3½ digit LCD with 12.7mm (0.5\") digit height, annunciators and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eSpecifications:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e- Accuracy (overall error): 0.1 % (±1 count)\u003cbr\u003e- Operating temperature: 0 to 50 °C (32 to 122 °F)\u003cbr\u003e- Sample rate: 2.5 samples\/sec\u003cbr\u003e- Supply voltage (V+ to V-): 6 to 15 V d.c.\u003cbr\u003e- Supply Voltage (V+ to GND): 3 to 7.5 V d.c.\u003cbr\u003e- Supply current (V+ to V-): 350 uA\u003cbr\u003e- Supply current (V+ to GND): 500 uA\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eApplications:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e- Precision Instrumentation Systems\u003cbr\u003e- Power Supply Monitoring\u003cbr\u003e- Hand held instruments\u003cbr\u003e- Panel-Mount Indication\u003cbr\u003e- Low Power Voltage Measurement"}
